• Low noise amplifier ultra broadband frequencies ranging from 30 MHz to 40 GHz

• High gain low noise amplifier models exhibit high dynamic range

• Typical amplifier noise figures range 2.5 to 3.0 dB across wide frequency bands

• High IP3 linearity, as high as +42 dBm

• No external matching components are required for these low noise amplifiers

• Hybrid MIC designs use GaAs PHEMT semiconductor technology for high efficiency

• Single Voltage supply is internally regulated

• Guaranteed operating performance over -20°C to +70°C

• Models are available in environmentally sealed metal packages with connectors

• ECCN EAR99 for these low noise amps

Pasternack's broad Line of

Ultra-Broadband and Millimeter Wave Low Noise Amplifiers

▼ Click on the links below for more details

All in stock and ready for same-day shipping!

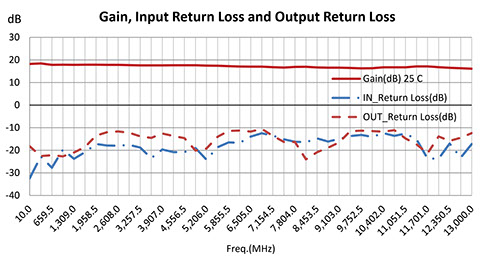

600 mW Psat 100 MHz to 12 GHz Medium Power Broadband Amplifier 18 dB Gain 33 dBm IP3 3 dB NF SMA

PE15A3007

Broadband, Low Noise

0.10 - 12

18

1

25

0.3

28

3

33

12/300

1.2 x 1.0 x 0.4

SMA

EAR99

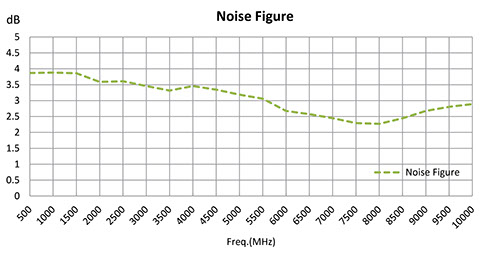

25 dBm P1dB 500 MHz to 10 GHz Medium Power Broadband Amplifier 32 dB Gain 33 dBm IP3 3 dB NF SMA

PE15A3005

Broadband, Low Noise

0.50 - 10

32

1

25

0.3

3

33

12/375

1.5 x 1.0 x 0.4

SMA

EAR99

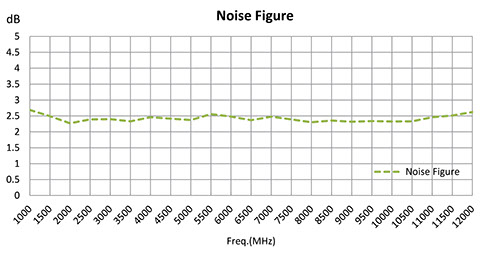

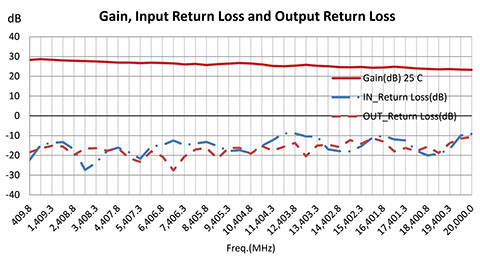

23 dBm P1dB 500 MHz to 18 GHz Medium Power Broadband Amplifier 27 dB Gain 35 dBm IP3 SMA

PE15A3008

Broadband, Low Noise

0.50 - 18

27

2.3

23

0.2

2.5

35

12/330

1.5 x 1.2 x 0.4

SMA

EAR99

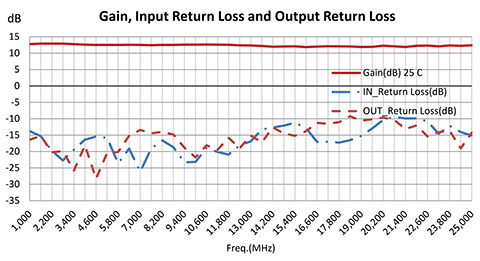

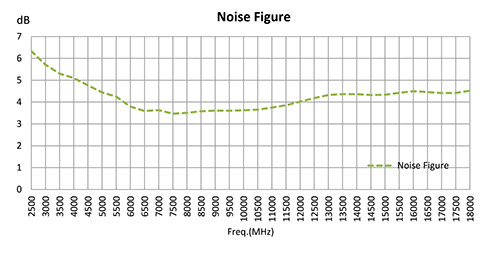

600 mW Psat 2 GHz to 24 GHz Medium Power Broadband Amplifier 12 dB Gain 35 dBm IP3 2.92mm

PE15A3009

Broadband, Low Noise

2 - 24

12

0.75

26

0.400

26

4.0

35

12/260

1.2 x 1.0 x 0.4

K

EAR99

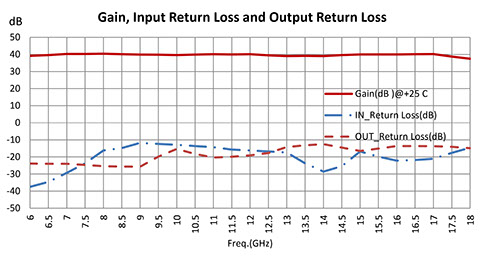

500 mW P1dB 6 GHz to 18 GHz Medium Power Broadband Amplifier 36 dB Gain SMA

PE15A3017

Broadband, Low Noise

6 - 18

36

2

27

0.5

3.5

15/800

2.083 x 1.093 x 0.38

SMA

EAR99

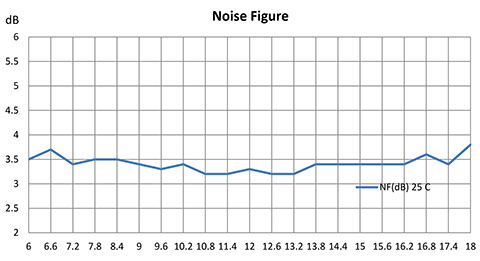

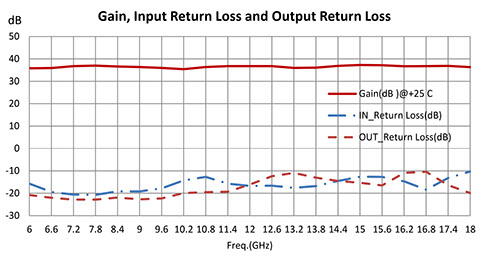

600 mW P1dB 6 GHz to 18 GHz Medium Power Broadband Amplifier 30 dB Gain 3.5 dB NF SMA

PE15A3018

Broadband, Low Noise

6 - 18

30

1

28

0.6

3.5

12/1300

1.86 x 1.15 x 0.42

SMA

EAR99

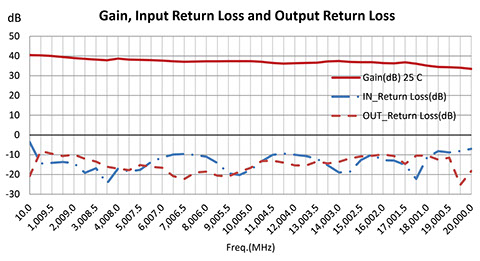

1 Watt P1dB 300 MHz to 18 GHz Medium Power Broadband Amplifier 37 dB Gain 42 dBm IP3 SMA

PE15A3021

Broadband, Low Noise

0.3 - 18

37

2

30.5

1.1

3.0

42

15/850

1.9 x 1.5 x 0.5

SMA

EAR99

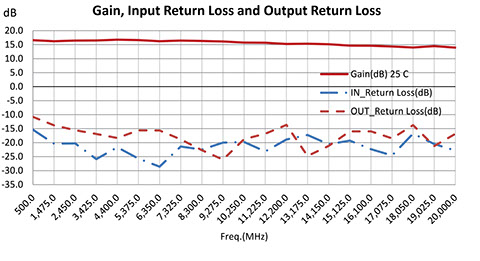

3 dB NF 14 dBm P1dB 500 MHz to 20 GHz Low Noise Broadband Amplifier 14 dB Gain SMA

PE15A3253

Broadband, Low Noise

0.5 - 20

15

1.75

20

0.1

3

29

12/180

1.08 x 0.53 x 0.29

SMA

EAR99

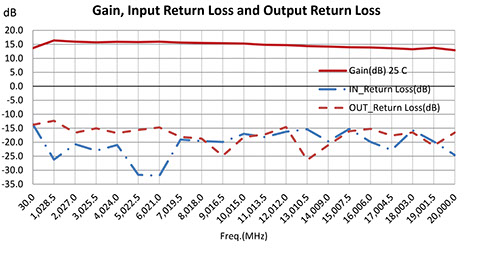

3 dB NF 20 dBm P1dB 30 MHz to 20 GHz Low Noise Broadband Amplifier 15 dB Gain SMA

PE15A3254

Broadband, Low Noise

0.03 - 20

15

2.5

20

0.1

3

29

12/180

1.08 x 0.53 x 0.29

SMA

EAR99

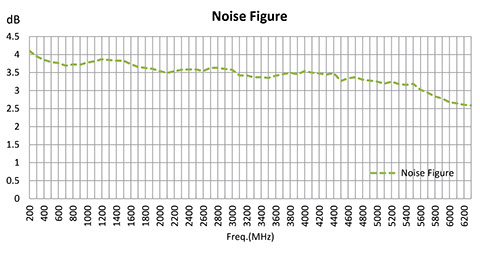

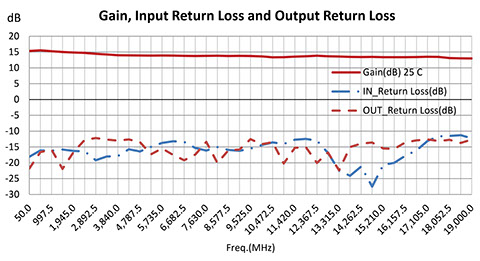

18 dBm Psat 100 MHz to 18 GHz Low Noise Broadband Amplifier 14 dB Gain 28 dBm IP3 SMA

PE15A3255

Broadband, Low Noise

0.1 - 18

14

1.5

16

0.04

18

3

28

12/80

1.2 x 1.0 x 0.4

SMA

EAR99

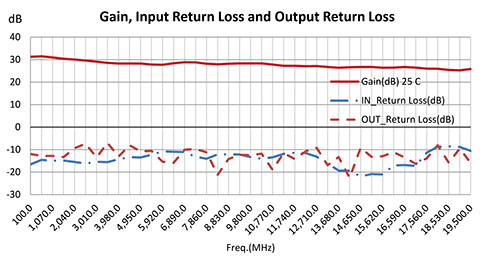

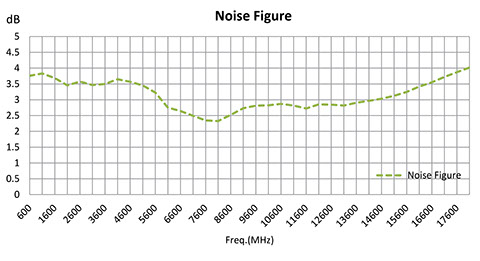

18 dBm Psat 100 MHz to 18 GHz Low Noise Broadband Amplifier 28 dB Gain 28 dBm IP3 SMA

PE15A3256

Broadband, Low Noise

0.1 - 18

28

2.5

16

0.04

18

3

28

12/160

1.5 x 1.0 x 0.4

SMA

EAR99

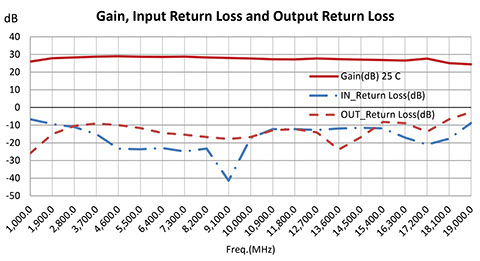

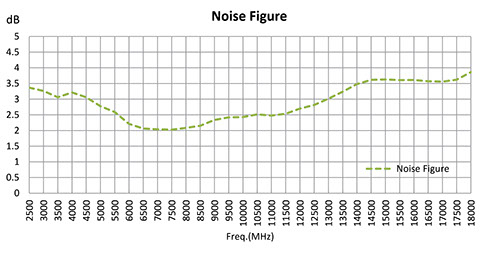

3 dB NF 14 dBm P1dB 2 GHz to 18 GHz Low Noise Broadband Amplifier 26 dB Gain 24 dBm IP3 SMA

PE15A3257

Broadband, Low Noise

2 - 18

26

2

14

0.025

3

24

12/140

1.5 x 0.85 x 0.375

SMA

EAR99

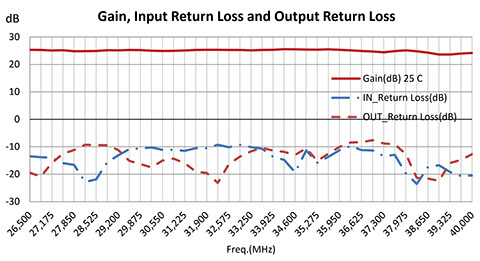

3 dB NF 2 GHz to 18 GHz Low Noise Broadband Amplifier 33 dB Gain SMA

PE15A3258

Broadband, Low Noise

2 - 18

33

1.5

13

0.02

3

22

12/180

1.5 x 1.0 x 0.4

SMA

EAR99

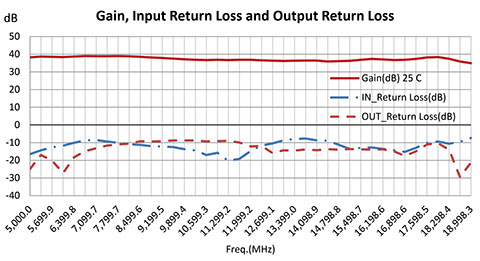

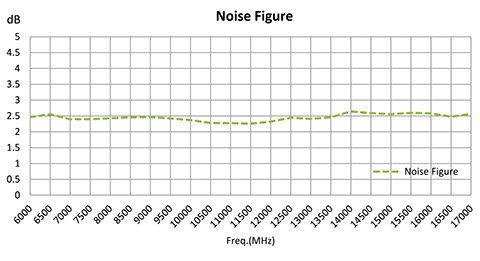

2.5 dB NF 22 dBm P1dB 6 GHz to 18 GHz Low Noise Broadband Amplifier 38 dB Gain 30 dBm IP3 SMA

PE15A3259

Broadband, Low Noise

6 - 18

38

2

22

0.2

28

2.5

30

12/280

1.2 x 1.0 x 0.4

SMA

EAR99

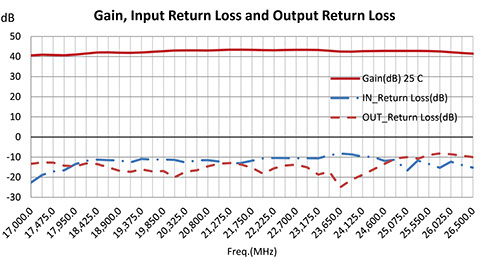

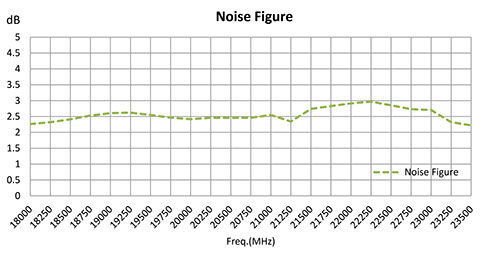

40 dB Gain 2 dB NF 13 dBm P1dB 18 GHz to 26.5 GHz Low Noise Broadband Amplifier 22 dBm IP3 SMA

PE15A3260

Broadband, Low Noise

18 - 26.5

40

1

13

0.02

2

22

12/180

1.5 x 1.0 x 0.4

SMA

EAR99

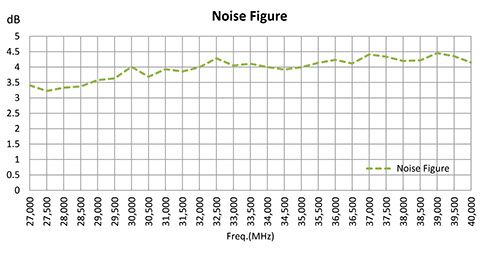

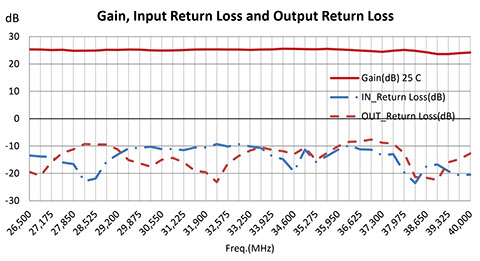

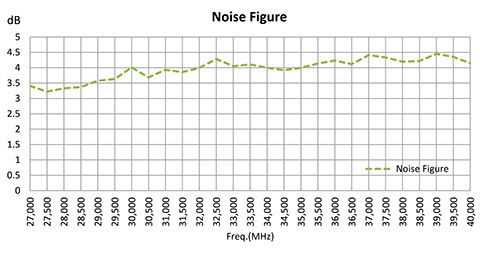

3.5 dB NF 13.5 dBm P1dB 26.5 GHz to 40 GHz Low Noise Broadband Amplifier 22 dB Gain 22 dBm IP3 2.92mm

PE15A3261

Broadband, Low Noise

26.5 - 40

22

0.75

14

0.025

3.5

22

12/125

1.5 x 1.0 x 0.4

SMA

EAR99

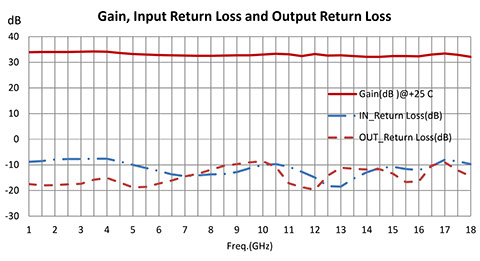

20 dBm Psat 1 GHz to 18 GHz Medium Power Broadband Amplifier 30 dB Gain SMA

PE15A3262

Broadband, Low Noise

1 - 18

30

1

20

0.10

3.7

12/240

1.6 x 1.0 x 0.378

SMA

EAR99
