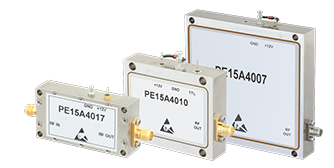

Pasternack's broad Line of

All in stock and ready for same-day shipping

▼ Click on a part number below for product details

PE P/N

Amplifier
Type

Frequency
Band (GHz)

"Gain
(dB)"

"Gain Variation
+/-(dB)"

"P1dB
(dBm)"

"P1dB
(Watts)"

"Psat
(dBm)"

"NF
(dB)"

"IP3
(dBm)"

"DC Power
(Volts/mA)"

"Mechanical Dimensions
L(in) X W(in) X H(in)"

Connector
Type

ECCN

PE15A4017

Power

0.02 - 3.0

27

0.75

30

1

12/800

SMA

EAR99



PE15A4016

Power

1.0 - 2.0

35

0.75

36

4

1.5

45

12/800

2.75 x 1.45 x 0.50

SMA

EAR99



PE15A4025

Power

1.0 - 2.0

35

0.75

33

2

1.5

45

12/800

2.75 x 1.45 x 0.50

SMA

EAR99



PE15A4010

High Gain, Power

1.2 - 1.4

46

0.5

28

12/400

2.36 x 1.93 x 0.57

SMA

EAR99



PE15A4007

Power

8.0 - 11.0

28

5

32

1.6

36

5/+2000

1.5 x 1.2 x 0.56

SMA

EAR99



PE15A4008

High Gain, Power

8 - 12

41

1

30

1

3.5

12/1200

2.36 x 2.91 x 0.63

SMA

EAR99



PE15A4006

Power

8.5 - 11

30

0.75

36

4

5

45

12/+4500

3.97 x 3.64 x 0.67

SMA

EAR99



PE15A4021

Power

18 - 26.5

33

1.25

31

1.3

38

12/1800

1.9 x 1.5 x 0.4

SMA

EAR99



PE15A4019

Power

0.06 - 6.0

36

1.5

29

0.8

39

15/530

1.5 x 1.0 x 0.4

SMA

EAR99



RF Amplifiers Selection

Click a category for more details
