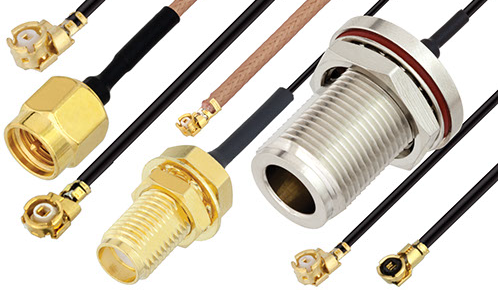

Ultra-Miniature UMCX, WMCX and HMCX32 Coaxial Cable Assemblies

  • UMCX, WMCX and HMCX32 Cable Assembly Series Operation from DC to 6 GHz
  • Connectors have mated connection heights ranging from 1.2 – 2.5mm
  • Coax options include 0.81mm, 1.13mm, 1.37mm, RG178 & double shielded RG178
  • Ultra-Miniature UMCX, WMCX and HMCX32 Cables are 100% RF and Continuity tested
  • Easy snap on/off mating
  • 1.37mm coax has 20% less loss than 1.13mm coax
  • Custom configurations available using RG178 coax (UMCX 2.5 versions only)



Click on the links below for product details ▼

UMCX, WMCX and HMCX32 ship today!

Scale image

HMCX32 1.2 Cable Series | 0.81mm Coax | 1.2mm Mated Height

Compatible with Murata HSC® and IPEX MHF4®

UMCX 2.1 Cable Series | 0.81mm Coax | 2.1mm Mated Height

Compatible with Hirose U.FL®, IPEX MHF®, Amphenol AMC® and TE UMCC®

WMCX 1.6 Cable Series | 0.81mm Coax | 1.6mm Mated Height

Compatible with Hirose W.FL® and IPEX MHFIII®

UMCX 2.5 Cable Series | 0.81mm Coax | 2.5mm Mated Height

Compatible with Hirose U.FL®, IPEX MHF®, Amphenol AMC® and TE UMCC®

UMCX 2.5 Cable Series | 1.13mm Coax | 2.5mm Mated Height

Compatible with Hirose U.FL®, IPEX MHF®, Amphenol AMC® and TE UMCC®

UMCX 2.5 Cable Series | 1.37mm Coax | 2.5mm Mated Height

Compatible with Hirose U.FL®, IPEX MHF®, Amphenol AMC® and TE UMCC®

UMCX 2.5 Cable Series | RG178 Coax | 2.5mm Mated Height

Compatible with Hirose U.FL®, IPEX MHF®, Amphenol AMC® and TE UMCC®

UMCX 2.5 Cable Series | RG178-DS Coax (Double Shielded) | 2.5mm Mated Height

Compatible with Hirose U.FL®, IPEX MHF®, Amphenol AMC® and TE UMCC®

Ultra-Miniature UMCX, WMCX and HMCX32 Coaxial Cable Assembly Series

Pasternack’s UMCX, WMCX and HMCX32 series ultra-miniature coaxial cable assemblies are constructed using a flexible micro-coax cable. These UMCX, WMCX and HMCX32 cable assembly series are compatible with products such as U.FL®, W.FL®, AMC®, UMCC®, IPEX MHF® and IPEX MHFIII® connectors depending on the connector series (see individual datasheet). Our UMCX, WMCX and HMCX32 cable assemblies come with multiple miniature coaxial cable options including 0.81mm coax, 1.13mm coax, 1.37mm coax, RG178 coax and double shielded RG178 (RG178-DS) coax.

These U.FL®, W.FL®, AMC®, UMCC®, IPEX MHF® and IPEX MHFIII® compatible, small form factor, flexible micro-coax jumper cables with UMCX 2.1 and 2.5, WMCX 1.6 and HMCX32 2.1 connectors provide a low profile RF connection perfect for board-to-board connectivity such as mini-PCI circuit boards. With performance up to 6 GHz, these UMCX, WMCX and HMCX32 jumpers cable series are ideal for wireless applications including Wi-Fi, Wireless LAN, Bluetooth, ZigBee, LTE, mini-PCI, mobile antenna/GPS/radio systems, PDA/PCS/cellular handset application and other wireless communications systems.

Our ultra-miniature cable assemblies are available from stock in standard lengths, and custom lengths are available upon request. Standard length U.FL®, W.FL®, AMC®, UMCC®, IPEX MHF® and IPEX MHFIII® compatible cables ship same day they are ordered. Each of our UMCX, WMCX and HMCX32 cables are 100% RF and continuity tested prior to shipment.


*U.FL and W.FL are registered trademarks of HIROSE Electric U.S.A., Inc.

*IPEX HMF and IPEX HMFIII are registered trademarks of Dai-ichi Seiko Co., Ltd.

*AMC is a registered trademark of Amphenol RF

*UMCC is a registered trademark of TE Connectivity
