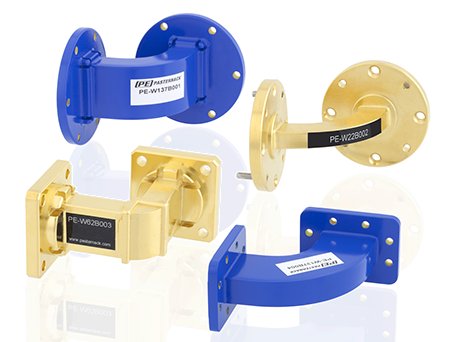

• Frequencies from 5.85 to 110 GHz across thirteen bands
• Waveguide bend sizes from WR-10 to WR-137

• H-plane and E-plane versions available

• VSWR as low as 1.08:1

• Oxygen Free Hard Copper (OFHC) or Copper Alloy construction

• Waveguide bends use UG and CPR style flanges



Waveguide bend series are in stock and ready for same-day shipping!

Click below for more waveguide bend details


Part No.

Waveguide
Type

RF Frequency
Range

Insertion
Loss
(dB)

Maximum
VSWR

Bend
Plane

Flange
Type

ECCN

WR-62 Commercial Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz   PE-W62B001

WR-62

12.4 - 18

0.15

1.08:1

E-Plane

Square Cover UG-419/U

EAR99

  • descrWR-62 Commercial Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz
  • WR-62 Commercial Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHzWR-62 Commercial Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz



WR-62 Commercial Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz   PE-W62B002

WR-62

12.4 - 18

0.15

1.08:1

H-Plane

Square Cover UG-419/U

EAR99

  • descrWR-62 Commercial Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz
  • WR-62 Commercial Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHzWR-62 Commercial Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz



WR-137 Commercial Grade Waveguide E-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHz   PE-W137B001

WR-137

5.85 - 8.2

0.15

1.08:1

E-Plane

Round Cover UG-344/U

EAR99

  • descrWR-137 Commercial Grade Waveguide E-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHz
  • WR-137 Commercial Grade Waveguide E-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHzWR-137 Commercial Grade Waveguide E-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHz



WR-137 Commercial Grade Waveguide H-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHz   PE-W137B002

WR-137

5.85 - 8.2

0.15

1.08:1

H-Plane

Round Cover UG-344/U

EAR99

  • descrWR-137 Commercial Grade Waveguide H-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHz
  • WR-137 Commercial Grade Waveguide H-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHzWR-137 Commercial Grade Waveguide H-Bend with UG-344/U Flange Operating from 5.85 GHz to 8.2 GHz



WR-137 Commercial Grade Waveguide E-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHz   PE-W137B003

WR-137

5.85 - 8.2

0.15

1.08:1

E-Plane

CPR-137G None

EAR99

  • descrWR-137 Commercial Grade Waveguide E-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHz
  • WR-137 Commercial Grade Waveguide E-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHzWR-137 Commercial Grade Waveguide E-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHz



WR-137 Commercial Grade Waveguide H-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHz   PE-W137B004

WR-137

5.85 - 8.2

0.15

1.08:1

H-Plane

CPR-137G None

EAR99

  • descrWR-137 Commercial Grade Waveguide H-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHz
  • WR-137 Commercial Grade Waveguide H-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHzWR-137 Commercial Grade Waveguide H-Bend with CPR-137G Flange Operating from 5.85 GHz to 8.2 GHz



WR-75 Commercial Grade Waveguide E-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz   PE-W75B001

WR-75

10 - 15

0.15

1.08:1

E-Plane

UBR120 None

EAR99

  • descrWR-75 Commercial Grade Waveguide E-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz
  • WR-75 Commercial Grade Waveguide E-Bend with UBR120 Flange Operating from 10 GHz to 15 GHzWR-75 Commercial Grade Waveguide E-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz



WR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz   PE-W75B002

WR-75

10 - 15

0.15

1.08:1

H-Plane

UBR120 None

EAR99

  • descrWR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz
  • WR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHzWR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz



WR-90 Commercial Grade Waveguide E-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHz   PE-W90B001

WR-90

8.2 - 12.4

0.15

1.08:1

E-Plane

Square Cover UG-39/U

EAR99

  • descrWR-90 Commercial Grade Waveguide E-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHz
  • WR-90 Commercial Grade Waveguide E-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHzWR-90 Commercial Grade Waveguide E-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHz



WR-90 Commercial Grade Waveguide H-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHz   PE-W90B002

WR-90

8.2 - 12.4

0.15

1.08:1

H-Plane

Square Cover UG-39/U

EAR99

  • descrWR-90 Commercial Grade Waveguide H-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHz
  • WR-90 Commercial Grade Waveguide H-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHzWR-90 Commercial Grade Waveguide H-Bend with UG-39/U Flange Operating from 8.2 GHz to 12.4 GHz



WR-90 Commercial Grade Waveguide E-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHz   PE-W90B003

WR-90

8.2 - 12.4

0.15

1.08:1

E-Plane

CPR-90G None

EAR99

  • descrWR-90 Commercial Grade Waveguide E-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHz
  • WR-90 Commercial Grade Waveguide E-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHzWR-90 Commercial Grade Waveguide E-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHz



WR-90 Commercial Grade Waveguide H-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHz   PE-W90B004

WR-90

8.2 - 12.4

0.15

1.08:1

H-Plane

CPR-90G None

EAR99

  • descrWR-90 Commercial Grade Waveguide H-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHz
  • WR-90 Commercial Grade Waveguide H-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHzWR-90 Commercial Grade Waveguide H-Bend with CPR-90G Flange Operating from 8.2 GHz to 12.4 GHz



WR-112 Commercial Grade Waveguide H-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHz   PE-W112B002

WR-112

7.05 - 10

0.15

1.08:1

H-Plane

Square Cover UG-51/U

EAR99

  • descrWR-112 Commercial Grade Waveguide H-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHz
  • WR-112 Commercial Grade Waveguide H-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHzWR-112 Commercial Grade Waveguide H-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHz



WR-112 Commercial Grade Waveguide E-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHz   PE-W112B001

WR-112

7.05 - 10

0.15

1.08:1

E-Plane

Square Cover UG-51/U

EAR99

  • descrWR-112 Commercial Grade Waveguide E-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHz
  • WR-112 Commercial Grade Waveguide E-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHzWR-112 Commercial Grade Waveguide E-Bend with UG-51/U Flange Operating from 7.05 GHz to 10 GHz



WR-12 Instrumentation Grade Waveguide E-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHz   PE-W12B001

WR-12

60 - 90

0.21

1.1:1

E-Plane

Round Cover UG-387/U

EAR99

  • descrWR-12 Instrumentation Grade Waveguide E-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHz
  • WR-12 Instrumentation Grade Waveguide E-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHzWR-12 Instrumentation Grade Waveguide E-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHz



WR-12 Instrumentation Grade Waveguide H-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHz   PE-W12B002

WR-12

60 - 90

0.21

1.1:1

H-Plane

Round Cover UG-387/U

EAR99

  • descrWR-12 Instrumentation Grade Waveguide H-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHz
  • WR-12 Instrumentation Grade Waveguide H-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHzWR-12 Instrumentation Grade Waveguide H-Bend with UG-387/U Flange Operating from 60 GHz to 90 GHz



WR-15 Instrumentation Grade Waveguide E-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHz   PE-W15B001

WR-15

50 - 75

0.17

1.1:1

E-Plane

Round Cover UG-385/U

EAR99

  • descrWR-15 Instrumentation Grade Waveguide E-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHz
  • WR-15 Instrumentation Grade Waveguide E-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHzWR-15 Instrumentation Grade Waveguide E-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHz



WR-15 Instrumentation Grade Waveguide H-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHz   PE-W15B002

WR-15

50 - 75

0.17

1.1:1

H-Plane

Round Cover UG-385/U

EAR99

  • descrWR-15 Instrumentation Grade Waveguide H-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHz
  • WR-15 Instrumentation Grade Waveguide H-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHzWR-15 Instrumentation Grade Waveguide H-Bend with UG-385/U Flange Operating from 50 GHz to 75 GHz



WR-19 Instrumentation Grade Waveguide E-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHz   PE-W19B001

WR-19

40 - 60

0.18

1.1:1

E-Plane

Round Cover UG-383/U-Mod

EAR99

  • descrWR-19 Instrumentation Grade Waveguide E-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHz
  • WR-19 Instrumentation Grade Waveguide E-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHzWR-19 Instrumentation Grade Waveguide E-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHz



WR-19 Instrumentation Grade Waveguide H-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHz   PE-W19B002

WR-19

40 - 60

0.18

1.1:1

H-Plane

Round Cover UG-383/U-Mod

EAR99

  • descrWR-19 Instrumentation Grade Waveguide H-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHz
  • WR-19 Instrumentation Grade Waveguide H-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHzWR-19 Instrumentation Grade Waveguide H-Bend with UG-383/U-Mod Flange Operating from 40 GHz to 60 GHz



WR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz   PE-W22B001

WR-22

33 - 50

0.16

1.1:1

E-Plane

Round Cover UG-383/U

EAR99

  • descrWR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz
  • WR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHzWR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz



WR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz   PE-W22B002

WR-22

33 - 50

0.16

1.1:1

H-Plane

Round Cover UG-383/U

EAR99

  • descrWR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz
  • WR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHzWR-22 Instrumentation Grade Waveguide H-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz



WR-28 Instrumentation Grade Waveguide E-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHz   PE-W28B001

WR-28

26.5 - 40

0.28

1.1:1

E-Plane

Square Cover UG-599/U

EAR99

  • descrWR-28 Instrumentation Grade Waveguide E-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHz
  • WR-28 Instrumentation Grade Waveguide E-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHzWR-28 Instrumentation Grade Waveguide E-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHz



WR-28 Instrumentation Grade Waveguide H-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHz   PE-W28B002

WR-28

26.5 - 40

0.28

1.1:1

H-Plane

Square Cover UG-599/U

EAR99

  • descrWR-28 Instrumentation Grade Waveguide H-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHz
  • WR-28 Instrumentation Grade Waveguide H-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHzWR-28 Instrumentation Grade Waveguide H-Bend with UG-599/U Flange Operating from 26.5 GHz to 40 GHz



WR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz   PE-W42B001

WR-42

18 - 26.5

0.1

1.1:1

E-Plane

Square Cover UG-595/U

EAR99

  • descrWR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz
  • WR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHzWR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz



WR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz   PE-W42B002

WR-42

18 - 26.5

0.1

1.1:1

H-Plane

Square Cover UG-595/U

EAR99

  • descrWR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz
  • WR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHzWR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz



WR-51 Instrumentation Grade Waveguide E-Bend with UBR180 Flange Operating from 15 GHz to 22 GHz   PE-W51B001

WR-51

15 - 22

0.09

1.1:1

E-Plane

UBR180 None

EAR99

  • descrWR-51 Instrumentation Grade Waveguide E-Bend with UBR180 Flange Operating from 15 GHz to 22 GHz
  • WR-51 Instrumentation Grade Waveguide E-Bend with UBR180 Flange Operating from 15 GHz to 22 GHzWR-51 Instrumentation Grade Waveguide E-Bend with UBR180 Flange Operating from 15 GHz to 22 GHz



WR-51 Instrumentation Grade Waveguide H-Bend with UBR180 Flange Operating from 15 GHz to 22 GHz   PE-W51B002

WR-51

15 - 22

0.09

1.1:1

H-Plane

UBR180 None

EAR99

  • descrWR-51 Instrumentation Grade Waveguide H-Bend with UBR180 Flange Operating from 15 GHz to 22 GHz
  • WR-51 Instrumentation Grade Waveguide H-Bend with UBR180 Flange Operating from 15 GHz to 22 GHzWR-51 Instrumentation Grade Waveguide H-Bend with UBR180 Flange Operating from 15 GHz to 22 GHz



WR-62 Instrumentation Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz   PE-W62B003

WR-62

12.4 - 18

0.09

1.1:1

E-Plane

Square Cover UG-419/U

EAR99

  • descrWR-62 Instrumentation Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz
  • WR-62 Instrumentation Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHzWR-62 Instrumentation Grade Waveguide E-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz



WR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz   PE-W62B004

WR-62

12.4 - 18

0.09

1.1:1

H-Plane

Square Cover UG-419/U

EAR99

  • descrWR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz
  • WR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHzWR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz



WR-10 Instrumentation Grade Waveguide E-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHz   PE-W10B001

WR-10

75 - 110

0.21

1.1:1

E-Plane

Round Cover UG-387/U-Mod

EAR99

  • descrWR-10 Instrumentation Grade Waveguide E-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHz
  • WR-10 Instrumentation Grade Waveguide E-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHzWR-10 Instrumentation Grade Waveguide E-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHz



WR-10 Instrumentation Grade Waveguide H-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHz   PE-W10B002

WR-10

75 - 110

0.21

1.1:1

H-Plane

Round Cover UG-387/U-Mod

EAR99

  • descrWR-10 Instrumentation Grade Waveguide H-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHz
  • WR-10 Instrumentation Grade Waveguide H-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHzWR-10 Instrumentation Grade Waveguide H-Bend with UG-387/U-Mod Flange Operating from 75 GHz to 110 GHz



WR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz   PE-W42B001A

WR-42

18 - 26.5

0.1

1.1:1

E-Plane

Square Cover UG-595/U

EAR99

  • descrWR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz
  • WR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHzWR-42 Instrumentation Grade Waveguide E-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz



WR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz   PE-W42B002A

WR-42

18 - 26.5

0.1

1.1:1

H-Plane

Square Cover UG-595/U

EAR99

  • descrWR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz
  • WR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHzWR-42 Instrumentation Grade Waveguide H-Bend with UG-595/U Flange Operating from 18 GHz to 26.5 GHz



Waveguide Bend Series

Pasternack’s lines of waveguide bends operate from 5.85 to 90 GHz across 12 frequency bands. In waveguide systems that require a signal to turn or bend 90 degrees, precision waveguide bend components are used as to not degrade the transmission signal. Pasternack’s broad portfolio of in-stock and ready-to-ship waveguide bends boast low loss and VSWR as low as 1.08:1 and are available in both E-plane and H-plane configurations.

These 90 degree waveguide bend are constructed using gold plated, oxygen free hard copper (OFHC) or painted copper alloy depending on the model. The bends are also offered with either a UG-style flange per the military standard or a CPR-style flange. The Pasternack waveguide bend product line is commonly used in high power applications such as instrumentation, test benches, high efficiency RF, microwave and mm-wave transmissions, SATCOM, MILCOM, radar and telecom.

Most Pasternack models of bends are RoHS compliant. Like the other over 40,000 RF, microwave and millimeter wave components, waveguide bends are in-stock. Not only are they in stock, the waveguide bend series ships the same day as purchased.

For a complete list of Pasternack's products please click here
