  • Low Phase Noise Amplifier Broad Frequencies Ranging from 1.5 GHz to 18 GHz
  • Typical Phase Noise @ 10 KHz Offset as low as -180 dBc/Hz
  • Gain Levels Range from 9 dB to 14 dB
  • Highly Linear GaAs MMIC Technology - Output IP3 Linearity up to +34 dBm
  • Psat levels up to +25 dBm
  • Input/Output Ports are internally matched to 50 Ohms and are DC Blocked
  • Hermetically Sealed Rugged Packages support Field Replaceable SMA Connectors
  • Low Phase Noise Amplifier Models are MIL-Spec Compliant



Low phase noise amplifiers are in stock and
ship the same day

Click below for more low phase noise amplifier product details


Part No.

& Additional

Views

Frequency
Band
(GHz)

Gain
(dB)

Gain
Variation
(+ dB)

Noise
Figure
(dB)

Output
P1d
(dBm)

Psat
(dBm)

Output
IP
(dBm)

Phase Noise
@ 10 KHz
Offset (dBc/Hz)

DC Bias
(Volts / mA)

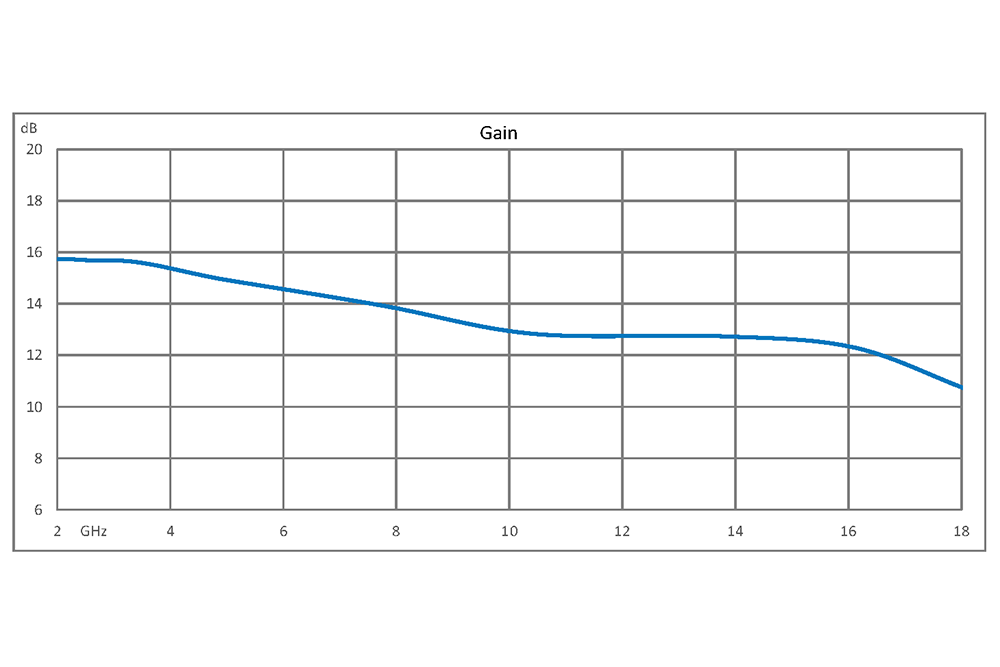

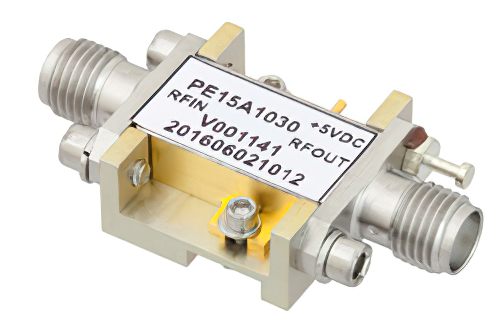

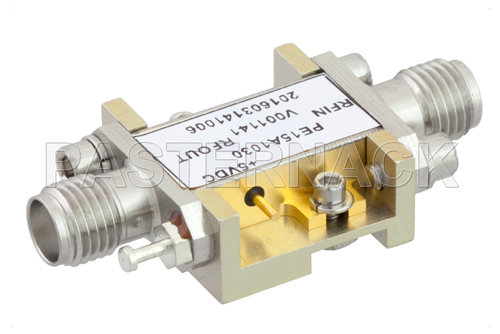

13 dBm P1dB, 2 GHz to 18 GHz, Low Phase Noise Amplifier 12.5 dB Gain, SMA   PE15A1030

2 to 18

12.5

2.2

6.5

13

16

20

-160

+5 / 80

  • descr13 dBm P1dB, 2 GHz to 18 GHz, Low Phase Noise Amplifier 12.5 dB Gain, SMA
  • descr13 dBm P1dB, 2 GHz to 18 GHz, Low Phase Noise Amplifier 12.5 dB Gain, SMA
  • descr13 dBm P1dB, 2 GHz to 18 GHz, Low Phase Noise Amplifier 12.5 dB Gain, SMA

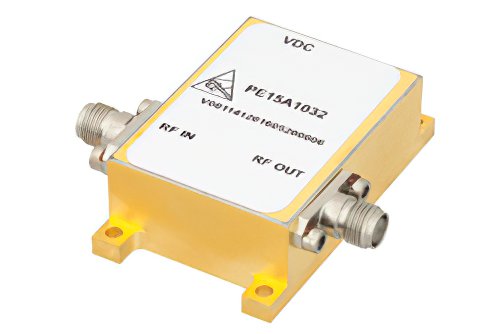

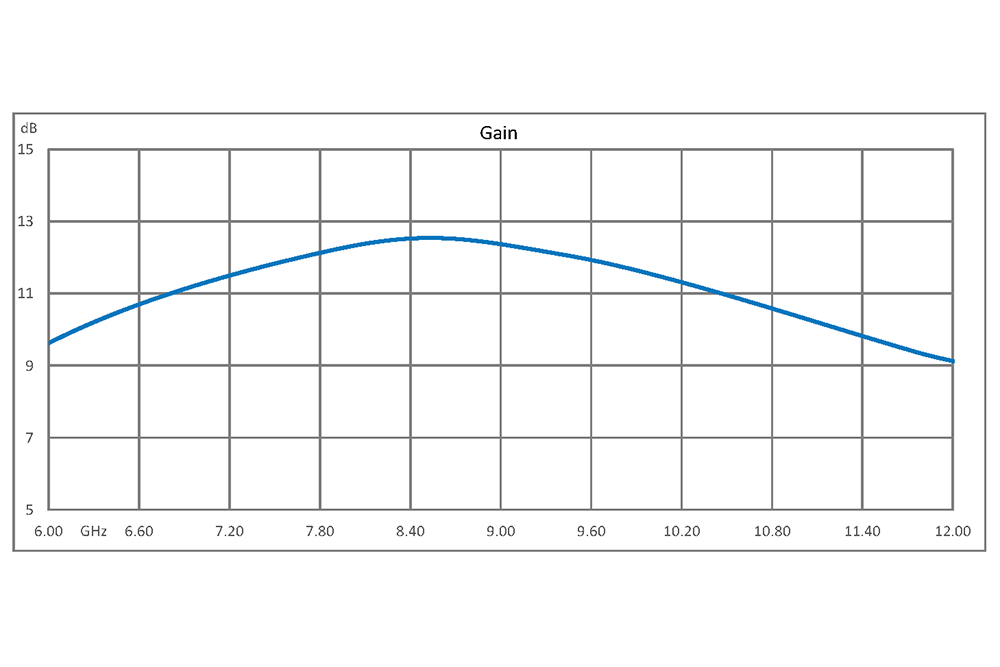

4.5 dB NF, 20 dBm P1dB, 6 GHz to 12 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA   PE15A1032

6 to 12

11

1.0

4.5

20

22

34

-176

+7 / 170

  • descr4.5 dB NF, 20 dBm P1dB, 6 GHz to 12 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA
  • descr4.5 dB NF, 20 dBm P1dB, 6 GHz to 12 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA
  • descr4.5 dB NF, 20 dBm P1dB, 6 GHz to 12 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA

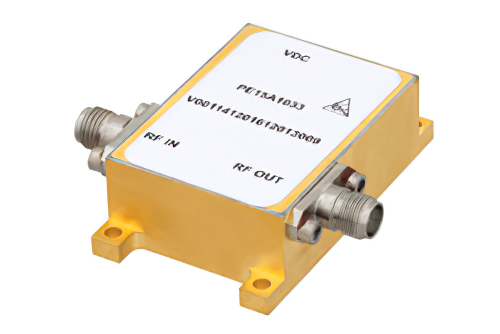

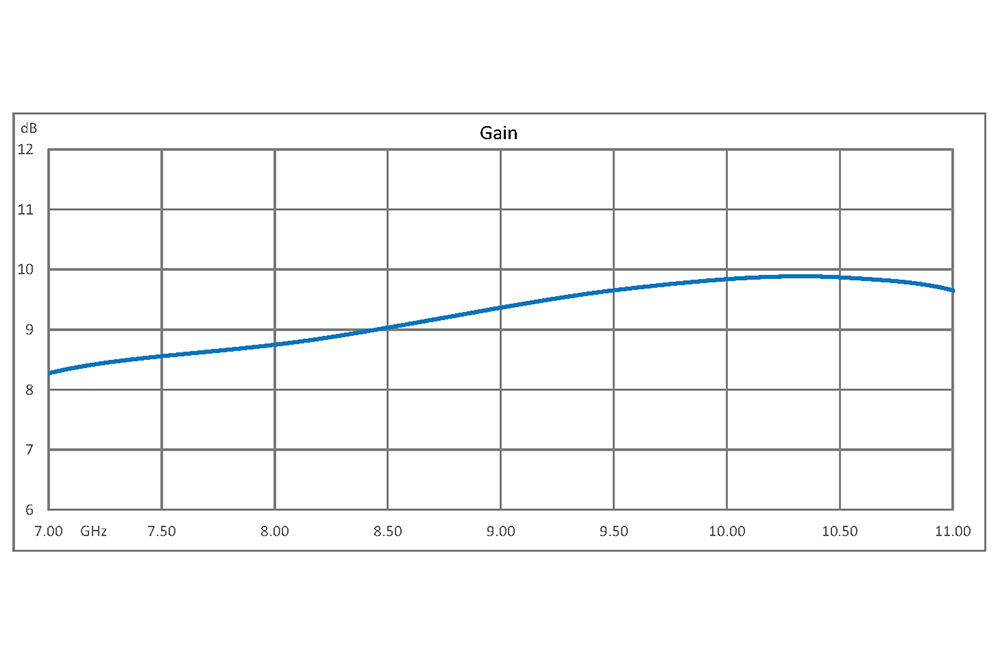

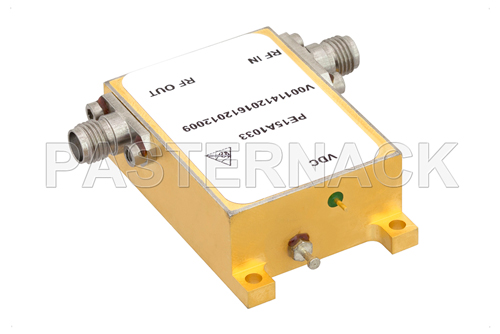

33 dBm IP3, 22 dBm P1dB, 7 GHz to 11 GHz, Low Phase Noise Amplifier 9 dB Gain, SMA   PE15A1033

7 to 11

9

- - -

6

22

25

33

-180

+7 / 300

  • descr33 dBm IP3, 22 dBm P1dB, 7 GHz to 11 GHz, Low Phase Noise Amplifier 9 dB Gain, SMA
  • descr33 dBm IP3, 22 dBm P1dB, 7 GHz to 11 GHz, Low Phase Noise Amplifier 9 dB Gain, SMA
  • descr33 dBm IP3, 22 dBm P1dB, 7 GHz to 11 GHz, Low Phase Noise Amplifier 9 dB Gain, SMA

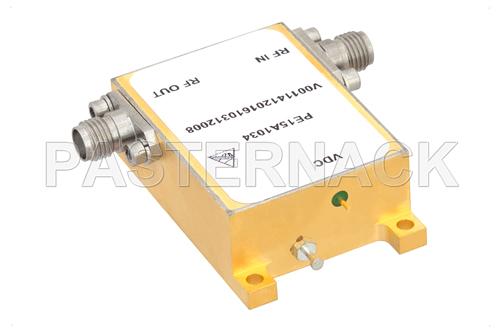

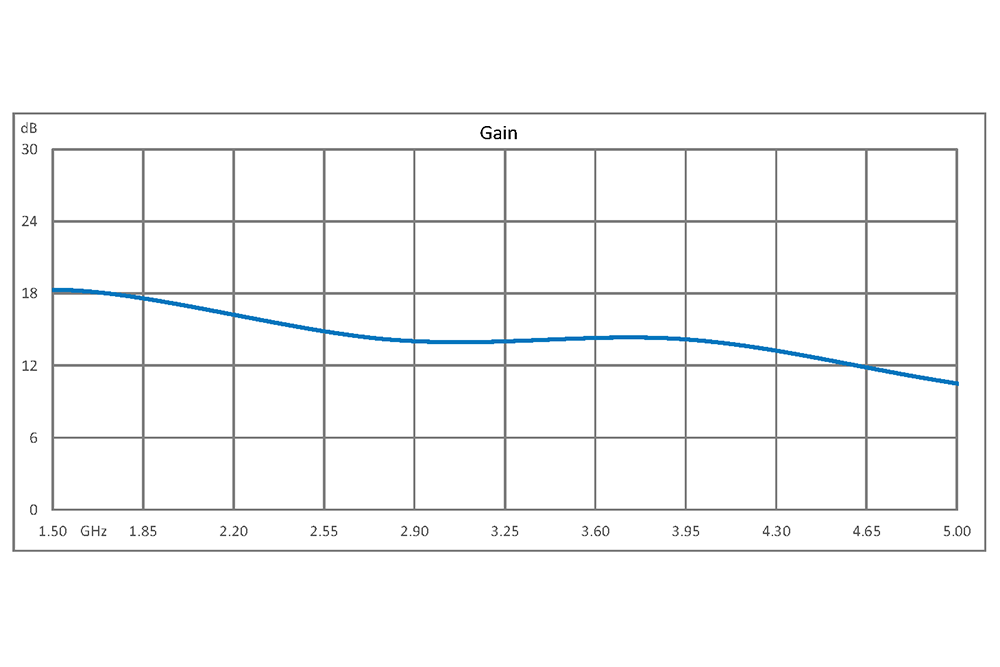

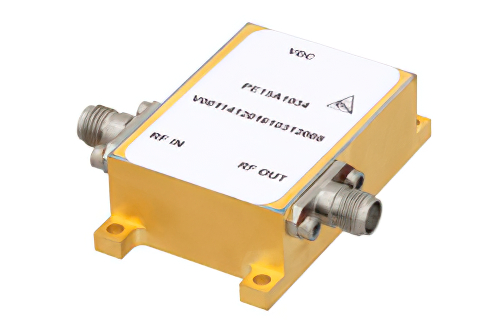

27 dBm IP3, 4.5 dB NF, 17 dBm P1dB, 1.5 GHz to 5 GHz, Low Phase Noise Amplifier 14 dB Gain, SMA   PE15A1034

1.5 to 5

14

3.5

4.5

17

22

27

-171

+7 / 170

  • descr27 dBm IP3, 4.5 dB NF, 17 dBm P1dB, 1.5 GHz to 5 GHz, Low Phase Noise Amplifier 14 dB Gain, SMA
  • descr27 dBm IP3, 4.5 dB NF, 17 dBm P1dB, 1.5 GHz to 5 GHz, Low Phase Noise Amplifier 14 dB Gain, SMA
  • descr27 dBm IP3, 4.5 dB NF, 17 dBm P1dB, 1.5 GHz to 5 GHz, Low Phase Noise Amplifier 14 dB Gain, SMA

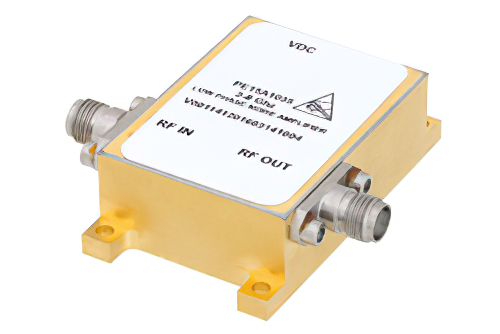

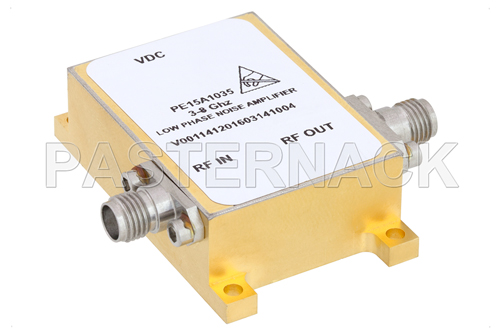

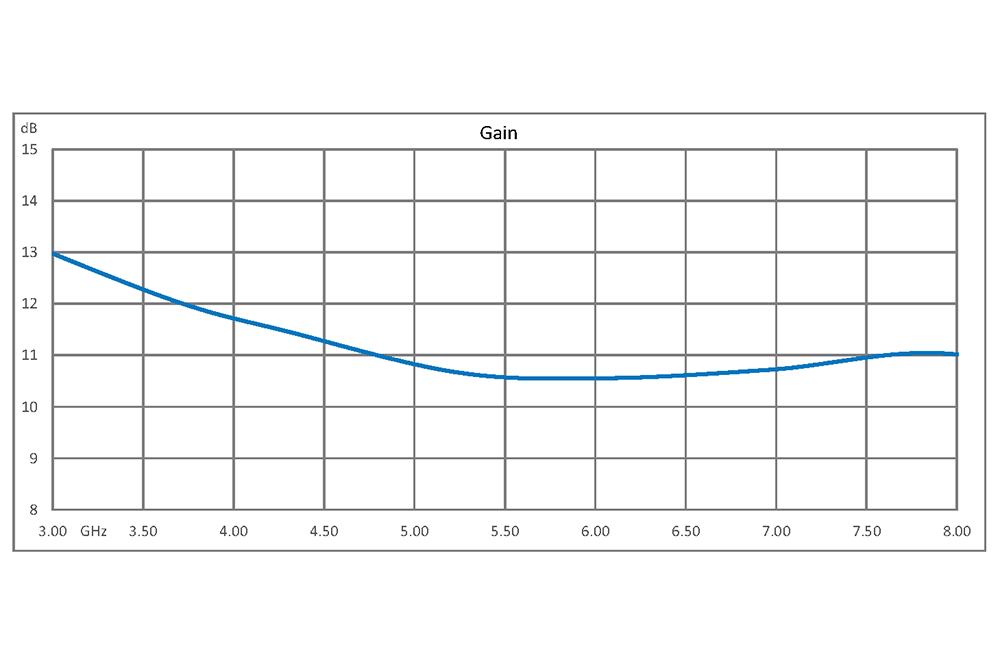

25 dBm IP3, 14 dBm P1dB, 3 GHz to 8 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA   PE15A1035

3 to 8

11

- - -

6

14

21

25

-168

+7 / 110

  • descr25 dBm IP3, 14 dBm P1dB, 3 GHz to 8 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA
  • descr25 dBm IP3, 14 dBm P1dB, 3 GHz to 8 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA
  • descr25 dBm IP3, 14 dBm P1dB, 3 GHz to 8 GHz, Low Phase Noise Amplifier 11 dB Gain, SMA



Low Phase Noise Amplifiers

Pasternack’s low phase noise amplifiers cover select frequency bands ranging from 1.5 to 18 GHz. Low phase noise amplifier series has residual phase noise levels as low as -180 dBc/Hz @ 10 KHz offset. Additional amplifier performance specs include small signal gain ranging from 9 to 14 dB, with typical noise figure of 5.5 dB.

Psat levels for these low phase noise amplifiers range from +16 to +25 dBm with Output IP3 levels as high as +34 dBm. All models feature single DC voltage supplies and input/output RF ports are internally matched for 50 ohms with DC blocking capacitors.

These compact module assemblies require no external components and are available in rugged Kovar™ metal drop-in packages. These amplifiers with low phase noise are gold-over-nickel-plated and support field replaceable SMA connectors. All low phase noise amplifier models are EAR99 and guaranteed to meet MIL-STD-883 test conditions for hermeticity and temperature cycle. Like all of the Pasternack RF, microwave and millimeter wave components, low phase noice amplifiers are in stock and ship the same day.
