Waveguide Terminations
- Waveguide size from WR-28 to WR-284
- Operating frequency range up to 40GHz
- Power rating ranging from 1W to 500W
- VSWR performance as low as 1.03:1
- Wide selections of body configuration/material available
All Available for Same-Day Shipping!
Part No.
& Additional
Views
Frequency
Range (GHz)
Max Power
(W)
VSWR
(Max)
Waveguide
Size
Flange
Type
Body
Material
Body
Length (in)
 |
PE-W90TR1001 | 9 to 10 |
2 |
1.05:1 |
WR-90 |
UG Square Cover |
Aluminum |
1.18 |
||
|
|
||||||||||
 |

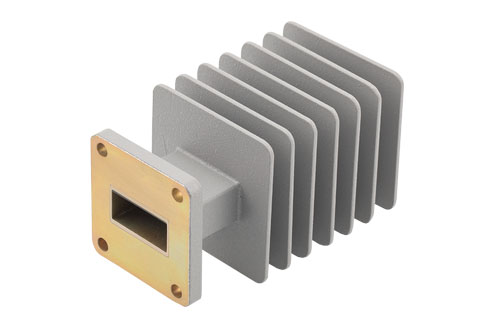

PE-W90TR1002 | 8.2 to 12.5 |
50 |
1.25:1 |
WR-90 |
UG Square Cover |
Aluminum |
3.54 |
||
|
|
||||||||||
 |

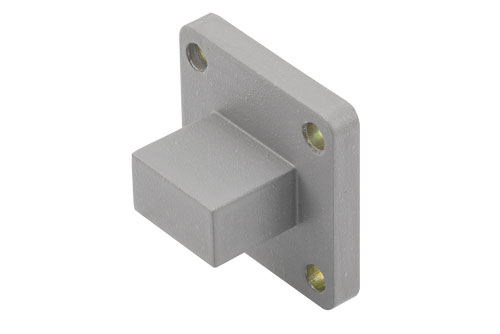

PE-W62TR1003 | 14.5 to 17.8 |
1 |
1.05:1 |
WR-62 |
UG Square Cover |
Aluminum |
0.79 |
||
|
|
||||||||||
 |
PE-W42TR1002 | 19.6 to 21.2 |
1 |
1.15:1 |
WR-42 |
UG Square Cover |
Aluminum |
0.79 |
||
|
|
||||||||||
 |
PE-W34TR1001 | 19.6 to 21.2 |
1 |
1.15:1 |
WR-34 |
UG Square Cover |
Brass |
0.71 |
||
|
|
||||||||||
 |

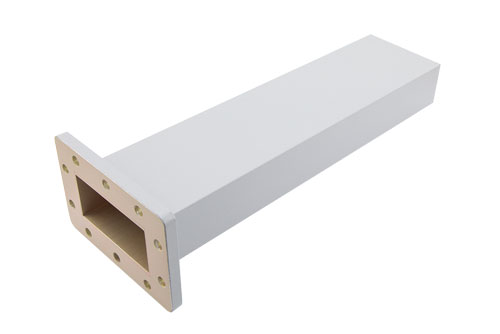

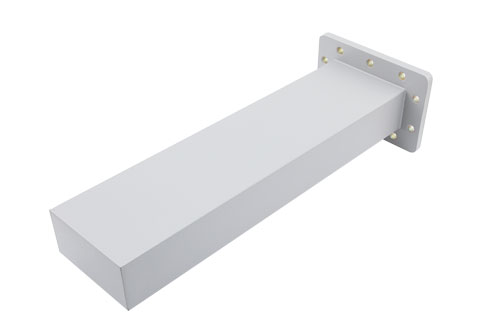

PE-W284TR1001 | 2.6 to 3.95 |
5 |
1.03:1 |
WR-284 |
CPR-284F |
Aluminum |
11.81 |
||
|
|
||||||||||
 |
PE-W28TR1002 | 29.4 to 31 |
2 |
1.15:1 |
WR-28 |
UG Square Cover |
Aluminum |
0.59 |
||
|
|
||||||||||
 |

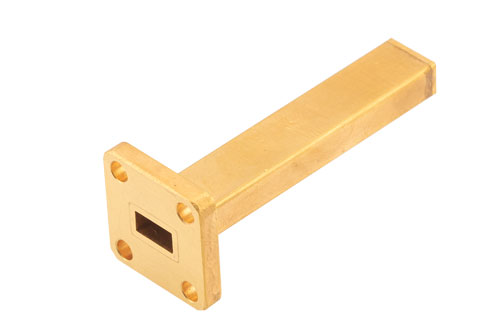

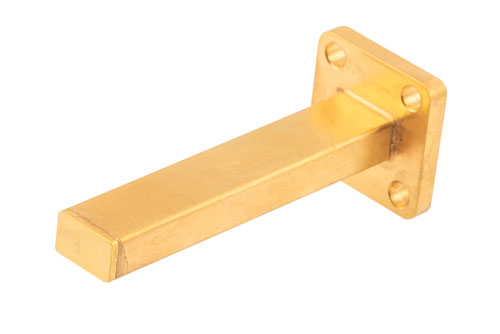

PE-W28TR1003 | 26.5 to 40 |
1 |
1.03:1 |
WR-28 |
UG Square Cover |
Brass |
1.97 |
||
|
|
||||||||||
 |
PE-W28TR1004 | 26.5 to 40 |
50 |
1.25:1 |
WR-28 |
UG Square Cover |
Brass |
4.13 |
||
|
|
||||||||||
 |

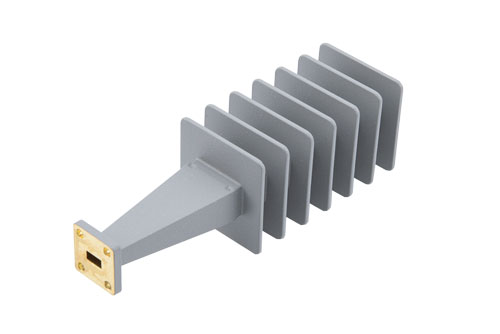

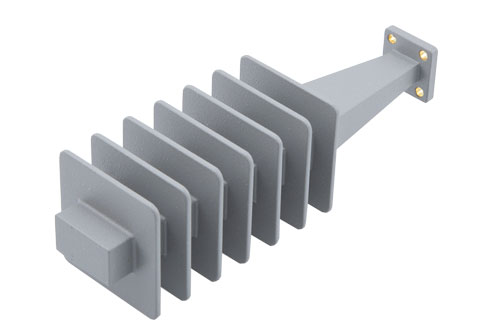

PE-W28TR1005 | 26.5 to 40 |
100 |
1.25:1 |
WR-28 |
UG Square Cover |
Brass |
5.31 |
||
|
|
||||||||||
 |

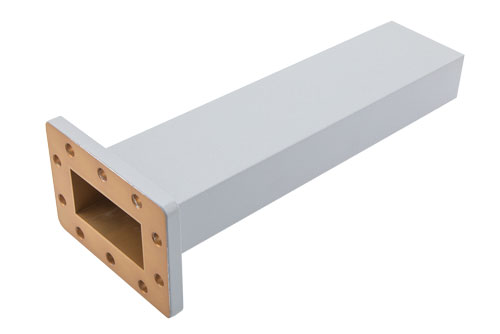

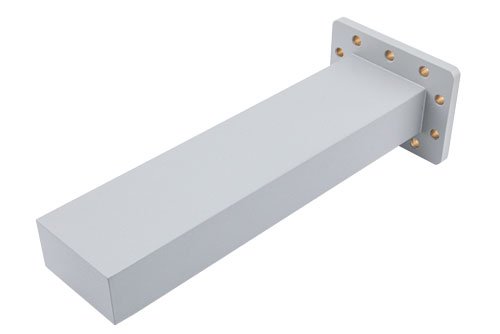

PE-W229TR1001 | 3.22 to 4.9 |
5 |
1.03:1 |
WR-229 |
CPR-229F |
Aluminum |
9.84 |
||
|
|
||||||||||
 |
PE-W229TR1002 | 3.22 to 4.9 |
5 |
1.2:1 |
WR-229 |
CPR-229F |
Brass |
2.76 |
||
|
|
||||||||||
 |
PE-W187TR1001 | 4.4 to 5 |
70 |
1.1:1 |
WR-187 |
CPR-187F |
Brass |
3.15 |
||
|
|
||||||||||
 |
PE-W187TR1002 | 3.94 to 5.99 |
5 |
1.03:1 |
WR-187 |
CPR-187F |
Aluminum |
8.66 |
||
|
|
||||||||||
 |
PE-W159TR1001 | 4.8 to 5.2 |
50 |
1.2:1 |
WR-159 |
CPR-159F |
Brass |
3.94 |
||
|
|
||||||||||
 |
PE-W159TR1002 | 4.64 to 7.05 |
5 |
1.03:1 |
WR-159 |
CPR-159F |
Aluminum |
7.87 |
||
|
|
||||||||||
 |
PE-W137TR1001 | 5.38 to 8.17 |
500 |
1.25:1 |
WR-137 |
CPR-137F |
Aluminum |
13.78 |
||
|
|
||||||||||
 |

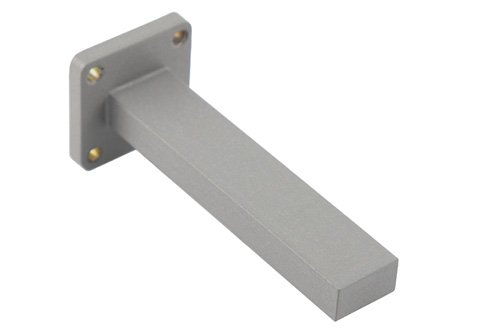

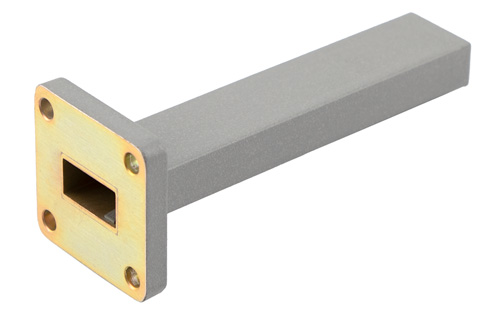

PE6201A | 11.9 to 18 |
2 |
1.03:1 |
WR-62 |
UG Square Cover |
Aluminum |
3.54 |
||
|
|
||||||||||
Waveguide Terminations from Pasternack
Pasternack’s new waveguide terminations consist of 18 models with operating frequency range up to 40GHz. These products are available in waveguide sizes from WR-28 to WR-284 as well as in various body configuration to fit the application needs. These waveguide loads offer excellent VSWR performances over wide operating frequency range. All of Pasternack’s waveguide termination products are in-stock and available for same-day shipping.
