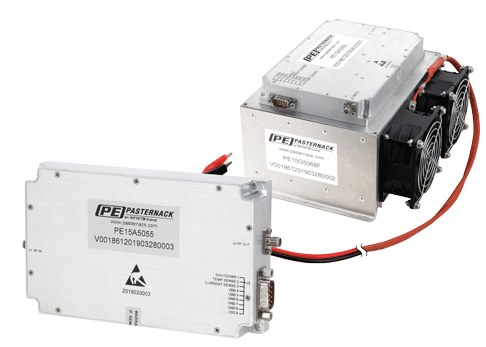

  • 18 new class AB broadband power amplifiers support popular octave bands ranging from 20 MHz to 18 GHz
  • GaN, LDMOS, and VDMOS designs feature high linearity and efficiency with low distortion over a wide dynamic range
  • Saturated output power levels ranging from 10 watts to 200 watts with up to 40% power added efficiency
  • Power gain levels range from 37 dB to 53 dB
  • D-Sub control connectors for DC bias, enable with TTL logic control, current and temperature sense functions
  • Compact and rugged coaxial packages have optional heatsink with cooling fans available

All in-stock and ready for same-day shipping!

▼ Click on the links below for more details

RF & Microwave Class AB High Power Amplifiers
with Available Heatsinks


Part No.

& Additional

Views

Frequency
Band
(GHz)

Design

Gain
(dB)

Psat

(Watts)

PAE
(%)

Harmonics
(dBc)

DC Power
(Volts/A)

I/O RF
Connector

Accessory

Heatsink

Model

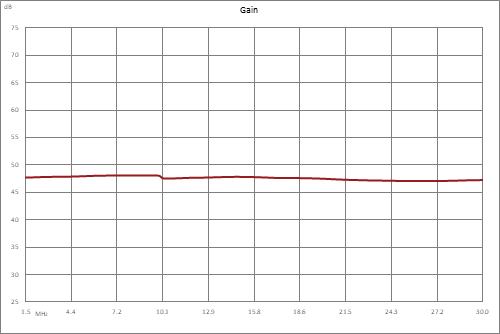

47 dB Gain, 50 Watt Psat, 1.5 MHz to 30 MHz, High Power VDMOS Amplifier, SMA, Class AB   PE15A5055

0.0015 - 0.03

VDMOS

47

50

40

-10

28/5

SMA/SMA

PE15G5060F

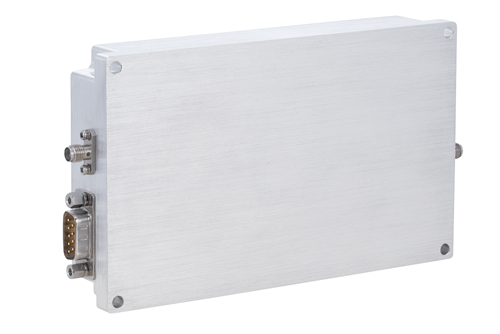

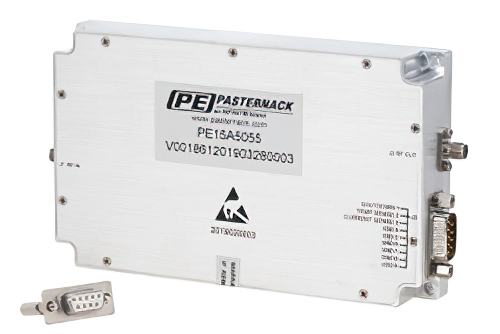

  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 30 MHz, High Power VDMOS Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 30 MHz, High Power VDMOS Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 30 MHz, High Power VDMOS Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 30 MHz, High Power VDMOS Amplifier, SMA, Class AB


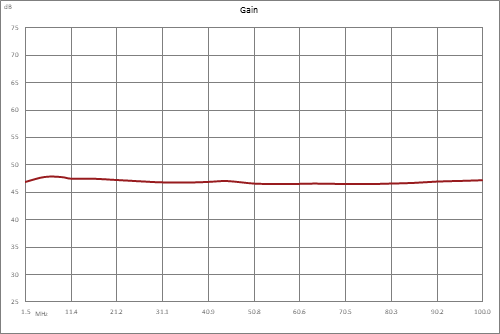

47 dB Gain, 50 Watt Psat, 1.5 MHz to 100 MHz, High Power VDMOS Amplifier, SMA, Class AB   PE15A5056

0.0015 - 0.1

VDMOS

47

50

40

-10

28/5

SMA/SMA

PE15G5060F

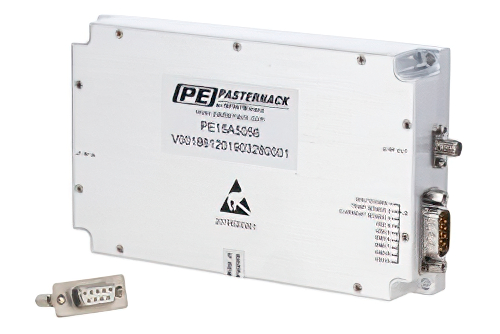

  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 100 MHz, High Power VDMOS Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 100 MHz, High Power VDMOS Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 100 MHz, High Power VDMOS Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 1.5 MHz to 100 MHz, High Power VDMOS Amplifier, SMA, Class AB

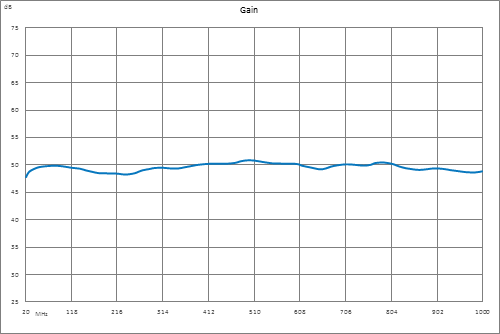

49 dB Gain, 80 Watt Psat, 20 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB   PE15A5057

0.02 - 1

LDMOS

49

80

30

-10

28/11

SMA/SMA

PE15G5060F
  • descr49 dB Gain, 80 Watt Psat, 20 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr49 dB Gain, 80 Watt Psat, 20 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr49 dB Gain, 80 Watt Psat, 20 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr49 dB Gain, 80 Watt Psat, 20 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB

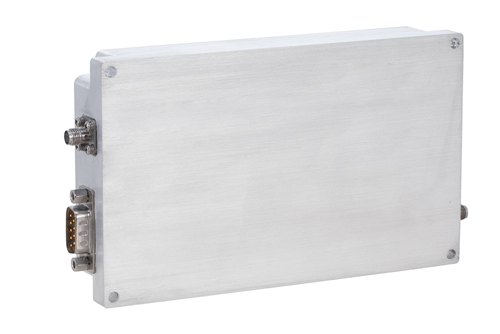

50 dB Gain, 100 Watt Psat, 500 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB   PE15A5058

0.5 - 1

LDMOS

50

100

35

-15

28/10

SMA/SMA

PE15G5060F
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 1 GHz, High Power LDMOS Amplifier, SMA, Class AB


48 dB Gain, 50 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5059

0.5 - 2.5

GaN

48

50

30

-15

28/7

SMA/SMA

PE15G5060F

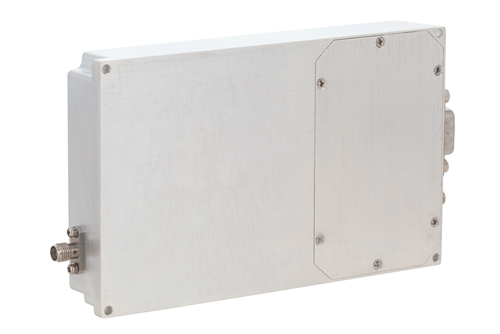

  • descr48 dB Gain, 50 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr48 dB Gain, 50 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr48 dB Gain, 50 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr48 dB Gain, 50 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB


50 dB Gain, 100 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5060

0.5 - 2.5

GaN

50

100

20

-10

28/13

SMA/SMA

PE15G5060F
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr50 dB Gain, 100 Watt Psat, 500 MHz to 2.5 GHz, High Power GaN Amplifier, SMA, Class AB

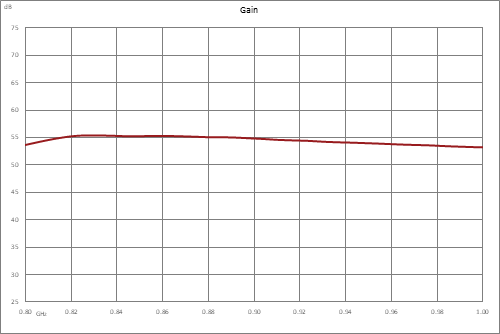

53 dB Gain, 200 Watt Psat, 800 MHz to 1 GHz, High Power LDMOS Amplifier, SMA Input, Type N Output, Class AB   PE15A5061

0.8 - 1

LDMOS

53

200

30

-15

28/25

SMA/N-TYPE

PE15G5068F
  • descr53 dB Gain, 200 Watt Psat, 800 MHz to 1 GHz, High Power LDMOS Amplifier, SMA Input, Type N Output, Class AB
  • descr53 dB Gain, 200 Watt Psat, 800 MHz to 1 GHz, High Power LDMOS Amplifier, SMA Input, Type N Output, Class AB
  • descr53 dB Gain, 200 Watt Psat, 800 MHz to 1 GHz, High Power LDMOS Amplifier, SMA Input, Type N Output, Class AB
  • descr53 dB Gain, 200 Watt Psat, 800 MHz to 1 GHz, High Power LDMOS Amplifier, SMA Input, Type N Output, Class AB


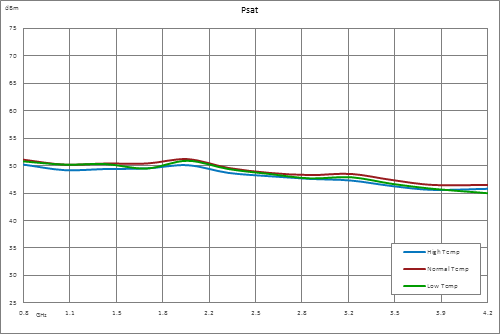

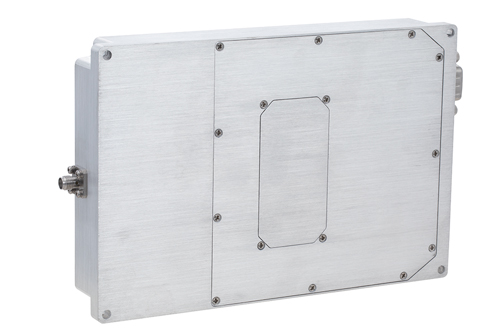

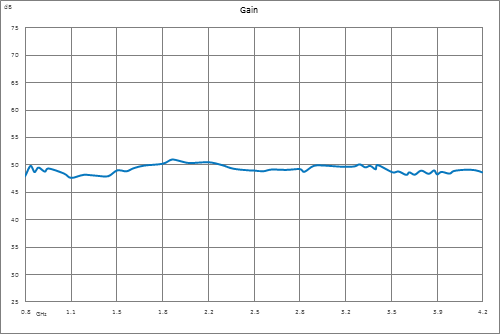

47 dB Gain, 50 Watt Psat, 800 MHz to 4.2 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5062

0.8 - 4.2

GaN

47

50

23

-15

28/13

SMA/SMA

PE15G5068F
  • descr47 dB Gain, 50 Watt Psat, 800 MHz to 4.2 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 800 MHz to 4.2 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 800 MHz to 4.2 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr47 dB Gain, 50 Watt Psat, 800 MHz to 4.2 GHz, High Power GaN Amplifier, SMA, Class AB


53 dB Gain, 200 Watt Psat, 1 GHz to 2 GHz, High Power GaN Amplifier, SMA Input, Type N Output, Class AB   PE15A5063

1 - 2

GaN

53

200

30

-20

28/20

SMA/N-TYPE

PE15G5068F
  • descr53 dB Gain, 200 Watt Psat, 1 GHz to 2 GHz, High Power GaN Amplifier, SMA Input, Type N Output, Class AB
  • descr53 dB Gain, 200 Watt Psat, 1 GHz to 2 GHz, High Power GaN Amplifier, SMA Input, Type N Output, Class AB
  • descr53 dB Gain, 200 Watt Psat, 1 GHz to 2 GHz, High Power GaN Amplifier, SMA Input, Type N Output, Class AB
  • descr53 dB Gain, 200 Watt Psat, 1 GHz to 2 GHz, High Power GaN Amplifier, SMA Input, Type N Output, Class AB

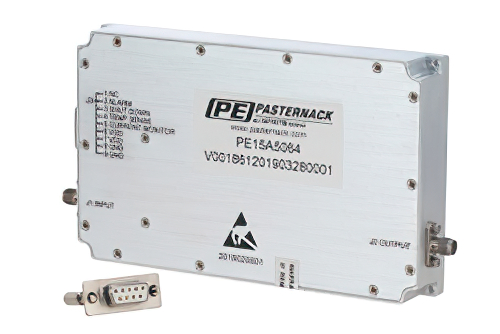

48 dB Gain, 50 Watt Psat, 1.2 GHz to 1.6 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5064

1.2 - 1.6

GaN

48

50

30

-15

28/8

SMA/SMA

PE15G5060F
  • descr48 dB Gain, 50 Watt Psat, 1.2 GHz to 1.6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr48 dB Gain, 50 Watt Psat, 1.2 GHz to 1.6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr48 dB Gain, 50 Watt Psat, 1.2 GHz to 1.6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr48 dB Gain, 50 Watt Psat, 1.2 GHz to 1.6 GHz, High Power GaN Amplifier, SMA, Class AB

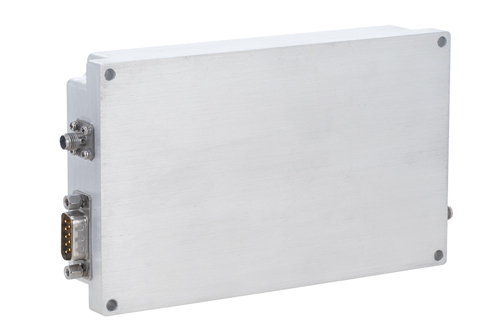

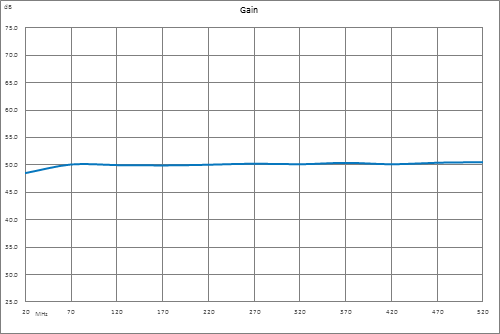

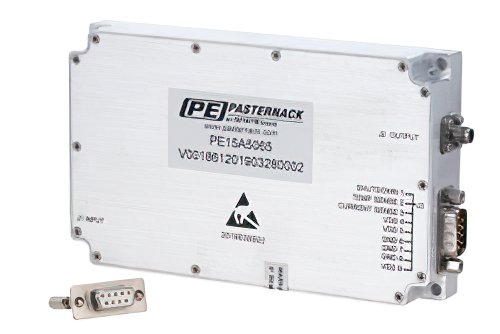

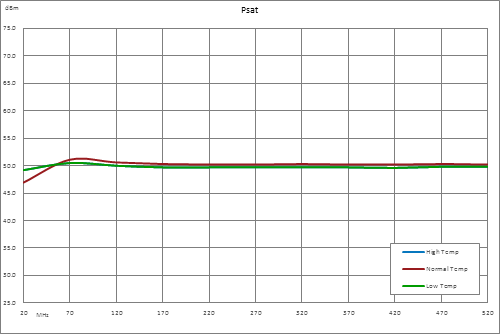

51 dB Gain, 100 Watt Psat, 20 MHz to 520 MHz, High Power LDMOS Amplifier, SMA, Class AB   PE15A5065

0.02 - .52

LDMOS

51

100

- - -

-10

28/9

SMA/SMA

PE15G5060F
  • descr51 dB Gain, 100 Watt Psat, 20 MHz to 520 MHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr51 dB Gain, 100 Watt Psat, 20 MHz to 520 MHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr51 dB Gain, 100 Watt Psat, 20 MHz to 520 MHz, High Power LDMOS Amplifier, SMA, Class AB
  • descr51 dB Gain, 100 Watt Psat, 20 MHz to 520 MHz, High Power LDMOS Amplifier, SMA, Class AB

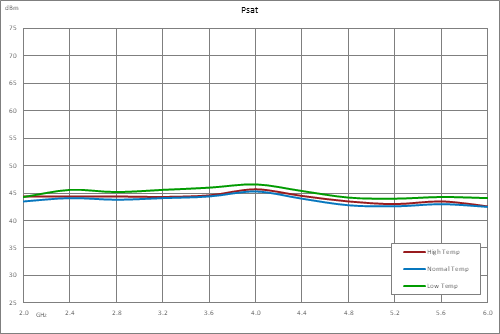

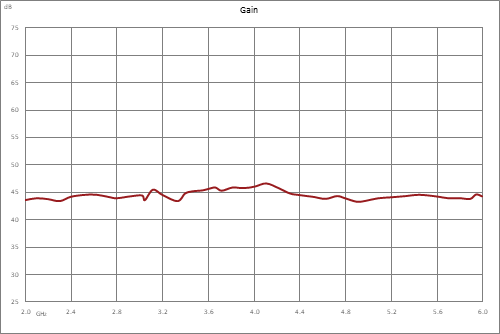

43 dB Gain, 20 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5066

2 - 6

GaN

43

20

30

-15

28/5

SMA/SMA

PE15G5068F
  • descr43 dB Gain, 20 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB


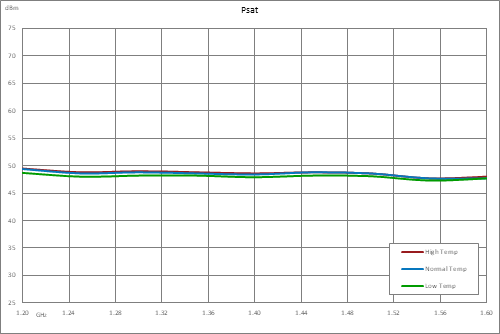

46 dB Gain, 40 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5067

2 - 6

GaN

46

40

25

-20

28/6

SMA/SMA

PE15G5068F
  • descr46 dB Gain, 40 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr46 dB Gain, 40 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr46 dB Gain, 40 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr46 dB Gain, 40 Watt Psat, 2 GHz to 6 GHz, High Power GaN Amplifier, SMA, Class AB


5 Watt Psat, 2 GHz to 18 GHz, High Power GaN Amplifier, SMA, 37 dB Gain, Class AB   PE15A5068

2 - 18

GaN

37

5

10

-12

22/2.5

SMA/SMA

PE15G5060F
  • descr5 Watt Psat, 2 GHz to 18 GHz, High Power GaN Amplifier, SMA, 37 dB Gain, Class AB
  • descr5 Watt Psat, 2 GHz to 18 GHz, High Power GaN Amplifier, SMA, 37 dB Gain, Class AB
  • descr5 Watt Psat, 2 GHz to 18 GHz, High Power GaN Amplifier, SMA, 37 dB Gain, Class AB
  • descr5 Watt Psat, 2 GHz to 18 GHz, High Power GaN Amplifier, SMA, 37 dB Gain, Class AB


43 dB Gain, 20 Watt Psat, 6 GHz to 10 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5069

6 - 10

GaN

43

20

25

-25

24/7

SMA/SMA

PE15G5068F
  • descr43 dB Gain, 20 Watt Psat, 6 GHz to 10 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 6 GHz to 10 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 6 GHz to 10 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 6 GHz to 10 GHz, High Power GaN Amplifier, SMA, Class AB

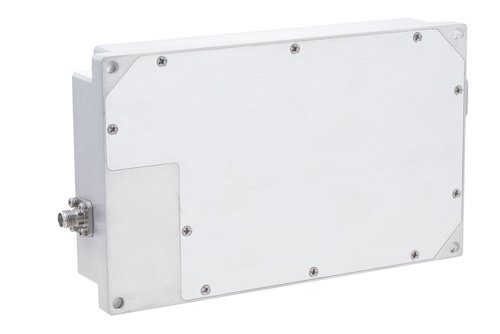

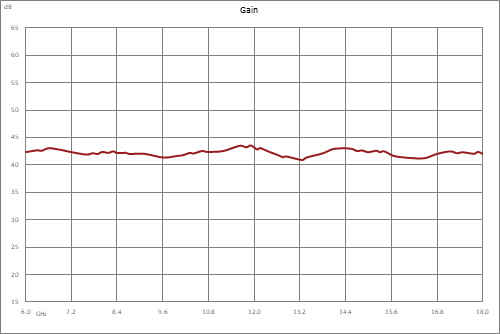

40 dB Gain, 10 Watt Psat, 6 GHz to 18 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5070

6 - 18

GaN

40

10

10

-10

28/3

SMA/SMA

PE15G5060F
  • descr40 dB Gain, 10 Watt Psat, 6 GHz to 18 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr40 dB Gain, 10 Watt Psat, 6 GHz to 18 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr40 dB Gain, 10 Watt Psat, 6 GHz to 18 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr40 dB Gain, 10 Watt Psat, 6 GHz to 18 GHz, High Power GaN Amplifier, SMA, Class AB


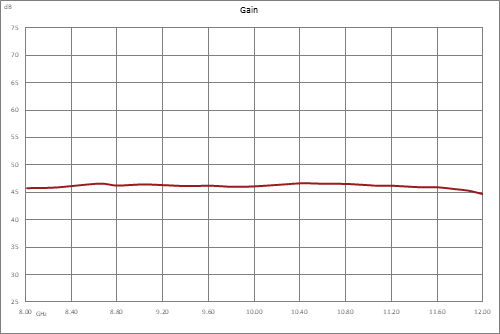

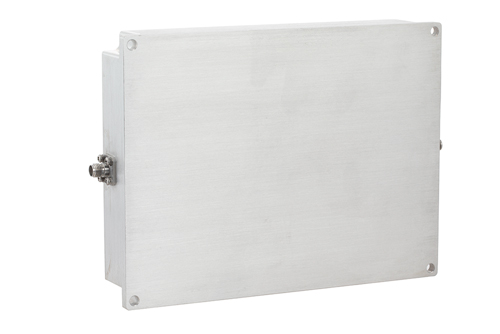

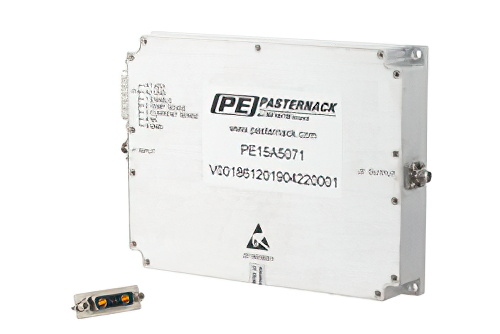

43 dB Gain, 20 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5071

8 - 12

GaN

43

20

20

-25

28/5

SMA/SMA

PE15G5068F
  • descr43 dB Gain, 20 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr43 dB Gain, 20 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB


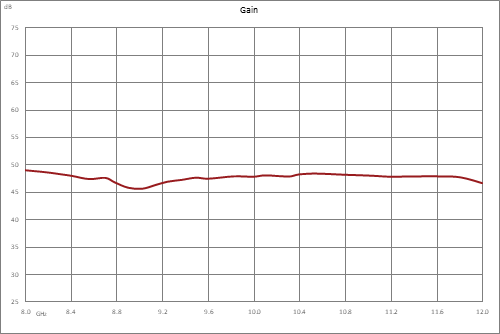

46 dB Gain, 40 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB   PE15A5072

8 - 12

GaN

46

40

15

-25

28/9

SMA/SMA

PE15G5068F
  • descr46 dB Gain, 40 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr46 dB Gain, 40 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr46 dB Gain, 40 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB
  • descr46 dB Gain, 40 Watt Psat, 8 GHz to 12 GHz, High Power GaN Amplifier, SMA, Class AB


Accessory Heatsink Models



PE15G5060F

Heatsink for amplifier models PE15A5055-5060,
PE15A5064-5065, PE15A5068 and PE15A5070



PE15G5068F

Heatsink for amplifier models PE15A5061-5063,
PE15A5066-5067, PE15A5069 and PE15A5071-5072



Pasternack’s high power, class AB amplifiers cover frequency bands from 20 MHz to 18 GHz that feature saturated output power levels ranging from 10 Watts to 200 Watts and power gain up to 53 dB.  Designs operate in a 50 ohm environment and are unconditionally stable.  The compact coaxial packages use SMA or N-Type connectors and have integrated D-Sub control connectors for DC bias, enabled with TTL logic control, current sense, and temperature sense functions.

The rugged assemblies operate over a wide temperature range from -20°C to +60°C and can withstand relative humidity exposure up to 95% maximum.  To insure optimum baseplate temperature for highly reliable performance, Pasternack offers 2 new heatsink modules with DC controlled cooling fans that are specifically designed for these power amplifiers.

Pasternack’s class AB, high power amplifiers and heatsinks are in-stock and available for immediate shipping with no minimum order quantity required.





RF Amplifiers Selection

Click a category for more details

For a complete list of Pasternack's products please click here
